| Parameter | Value |
|---|---|
| Vehicle Type | Snow Removal Truck |
| Complete Vehicle Model | CL5181TCX6AHL |
| Gross Vehicle Weight | 18000 kg |
| Rated Load Capacity | 5870 / 5805 / 6670 / 6605 kg |
| Curb Weight | 12000 kg / 11220 kg |
| Number of Axles | 3 |
| Cab Seating Capacity | 2 persons / 3 persons |
| Fuel Type | Diesel |
| Maximum Speed | 89 km/h / 101 km/h |
| Chassis Model | ZZ1187K501GF1 |
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 9600 × 2500 × 3100 mm |
| Wheelbase | 5000 mm |
| Front Overhang / Rear Overhang | 1550 mm / 3050 mm |
| Approach Angle / Departure Angle | 18° / 7° |
| Front Track Width | 1950 / 2035 / 1910 / 1930 / 2060 mm |
| Rear Track Width | 1848 / 1860 / 1880 mm |
| Tire Specification Options | 10.00R20 18PR; 295/80R22.5 18PR; 275/80R22.5 18PR |
| Number of Tires | 6 |
| Parameter | Value |
|---|---|
| Engine Model | MC07.25-61 |
| Engine Power | Sinotruk Howo 258 HP |
| Parameter | Value |
|---|---|
| Hopper Material | Q235 Carbon Steel |
| Spreader Material | 4mm Carbon Steel |
| Spreader Hopper Volume | 8 m³ |
| Power Take-off Mode | Chassis PTO-driven |
| Hydraulic Working Pressure | ≥ 16 MPa |
| Material Conveying Type | Scraper Chain Conveyor |
| Spreading Width | 2 – 15 m (adjustable) |
| Spreader Disc Material | Stainless Steel |
| Spreader Disc Diameter | 550 mm |
| Deicing Agent Application Rate | 20 – 300 g/m² (adjustable) |
| Working Speed | 5 – 30 km/h |
| Control Mode | Wired Remote Control |
| Standard Accessories | Arrow warning light, tarpaulin, filter screen, aluminum alloy rear climbing ladder, aluminum alloy side protection |
| Parameter | Value |
|---|---|
| Product Model | HL-XC-3500 |
| Weight | 600 kg |
| Lifting Height | 200 – 400 mm |
| Operation Mode | Electro-Hydraulic Linkage Control |
| Left-Right Deflection Angle | ≥ 30° |
| Snow Removal Efficiency | 90 % |
| Working Width | 3300 mm |
| Maximum Snow Removal Thickness | 150 mm |
| Working Speed | 5 – 30 km/h |
| Maximum Obstacle Clearance Height | 150 mm |
| Blade Height | 700 mm |
| Blade Material | High Wear-Resistant Steel |
| Blade Thickness | 4 mm |
| Cutting Edge Thickness | 16 mm |
| Parameter | Value |
|---|---|
| Tank Dimension (L×W×H) | 1500 × 2350 × 1600 mm |
| Tank Material | Carbon Steel |
| Heating Form | Fuel Burner |
| Heating Temperature Range | 0 – 100 °C |
| Liquid Deicing Agent Production Capacity | 5000 kg/h |
| Pump Type | Special Salt Water Gear Pump (Motor-Driven) |
| Pump Displacement | 75 L/min |
| Deicing Agent / Salt Water Ratio (Preset) | 7 / 3 |
| Functions | Heating + Stirring |
| Stirrer Type | Built-in Blade Stirrer |
| Insulation Method | Insulation cotton, heating, stainless steel combustion channel |
| Spray Rod Material | Stainless Steel Spray Rod |
| Standard Accessories | Low water level alarm, water temperature sensor, burner, generator, stirring motor, salt water pump |
| System Description | Installed behind cab; insulated carbon steel tank with fuel heating and built-in circulation stirring; dissolves solid granular deicing agent into liquid via heating & stirring for pre-wetting or direct spraying |

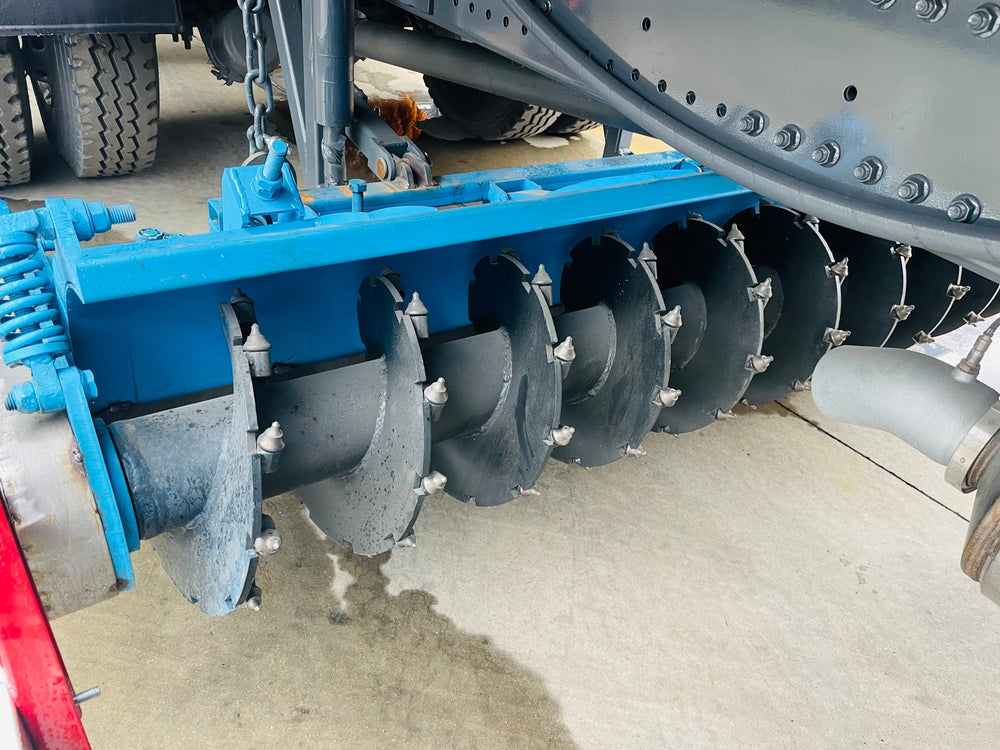

| Parameter | Value |
|---|---|
| Ice Breaker Model | HL-PB-600 |
| Effective Ice Breaking Width | 2500 mm |
| Ice Breaking Thickness | 50 mm (solid ice) / 30 mm (compacted ice) |
| Ice Breaking Working Speed | 4 – 15 km/h (solid ice) / 2 – 4 km/h (compacted ice) |
| Drive Form | Hydraulic Motor Drive |
| Primary Application | Compacted snow removal, deicing agent application, compacted snow & ice removal |
| Ice Breaking Blade Angle | Right 30° |
| Obstacle Clearance Height | 150 mm |

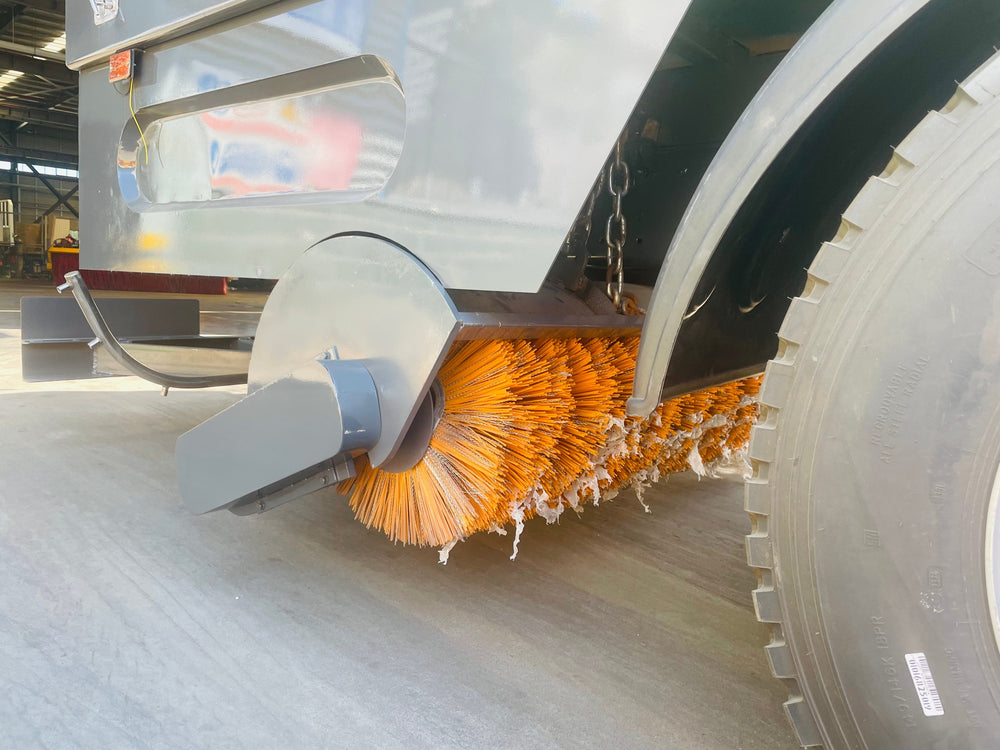

| Parameter | Value |
|---|---|
| Working Speed | 40 km/h |
| Left-Right Deflection Angle | ≥ 30° |
| Sweeping Roller Diameter | 650 mm |
| Power Take-Off | Vehicle transmission PTO (or transfer case) |
| Parameter | Value |
|---|---|
| Cab Type | Howo TX5 TX-K Cab, Basic Model, Sanitation Spec |
| Rearview Mirror | Manual Rearview Mirror |
| Seat Configuration | Main Mechanical Seat + Auxiliary Simple Seat |
| Transmission | HW95508STC Gearbox + HW45ZC French PTO |
| Front Axle | 1094 Self-Adjusting Arm Front Axle (Drum Brake) |
| Rear Axle | MCJ09BGY Self-Adjusting Arm Single Rear Axle (Drum Brake) |
| Final Drive Ratio | 5.29 |
| Frame Specification | Double-Layer Frame (6+4 / 250mm) |
| Suspension | Front & Rear Reinforced Multi-Leaf Springs (7 / 7+6) |
| Steering Gear | Domestic Steering Gear |
| Exhaust System | Cylindrical Muffler |
| Brake System | ABS (4S/4M) |
| Bumper | Mid-Position All-Metal Bumper |
| Wheels | Standard Steel Wheels |
| Tires | 10.00R20 Mixed Pattern 18PR |
| Cab Lift | Electro-Hydraulic Integrated Electric Lift |
| Fuel Tank | 200L Fuel Tank |
| PTO | Rotary PTO |
| Telematics | Sinotruk Zhinengtong D Version (Special Operation Vehicle) |
