| Parameter | Value |
|---|---|
| Chassis Basic Info | |
| Chassis Model | EQ1045SJ3CDF |
| Chassis Configuration | |

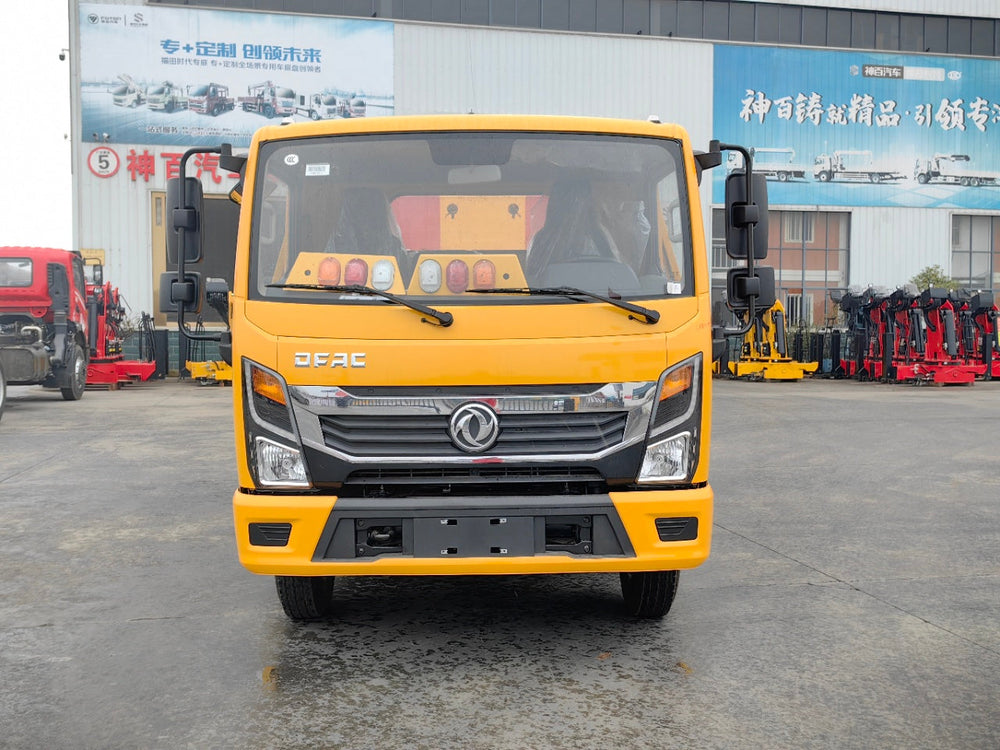

| Cab Model | Dongfeng New Xingyun Wide-body 1900 Cab |
| Engine | Yunnei 160HP Engine (2.5L Displacement) |
| Gearbox | 8-speed Gearbox |
| Wheelbase | 3600mm |
| Frame | 190 Double-layer Girder |
| Tires | 700 Steel Wire Tires |
| Rear Axle | 6-ton Load-bearing Rear Axle |
| Cab Interior & Equipment | Electric Windows, Remote Key, Multi-function Steering Wheel, Cruise Control, Original Factory Heating & Cooling Air Conditioner, Air Brake, Headlight Adjustment |
| Upper Body Configuration | |

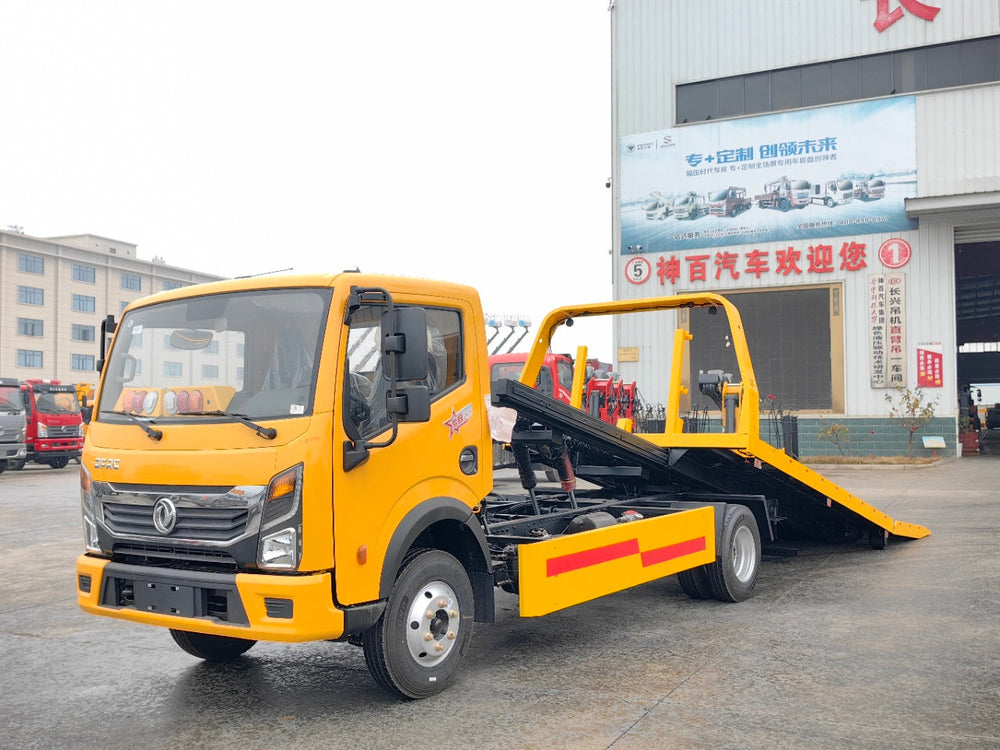

| Upper Body Type | Heavy-duty 7T One-tow-two Upper Body |
| Flatbed Dimensions | Overall Length 5.6m; Width 2.3m-2.55m (customizable on demand) |
| Frame Border | 14mm Thick Solid Steel Plate Frame with Cut Holes |

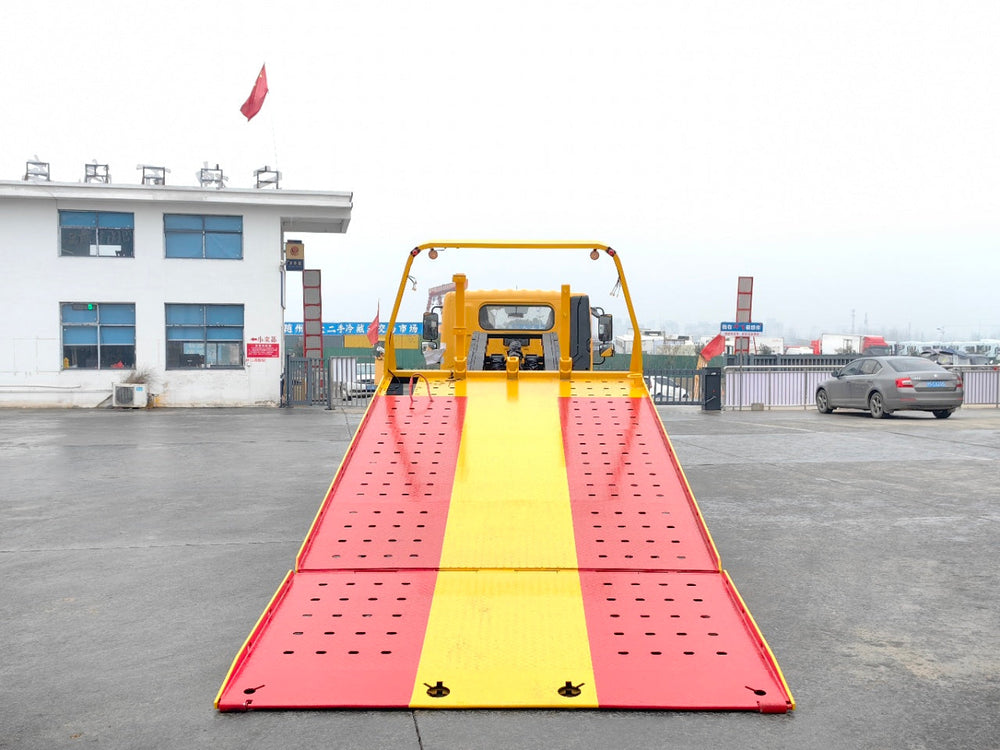

| Flatbed Floor | 5mm Thick Checkered Plate, anti-slip & wear-resistant |

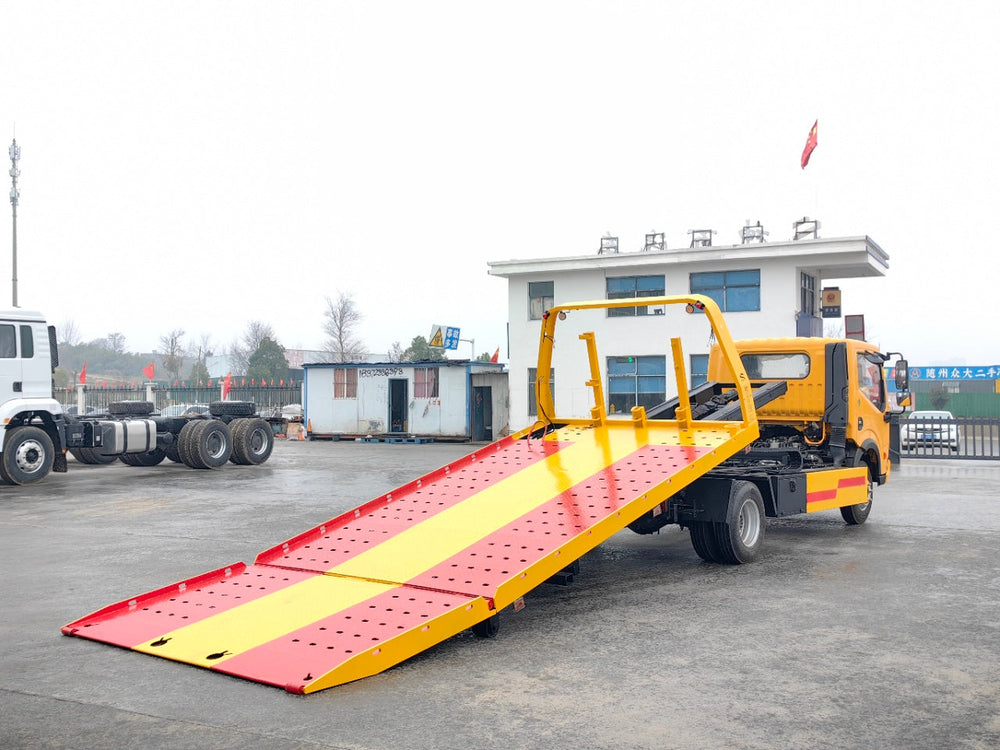

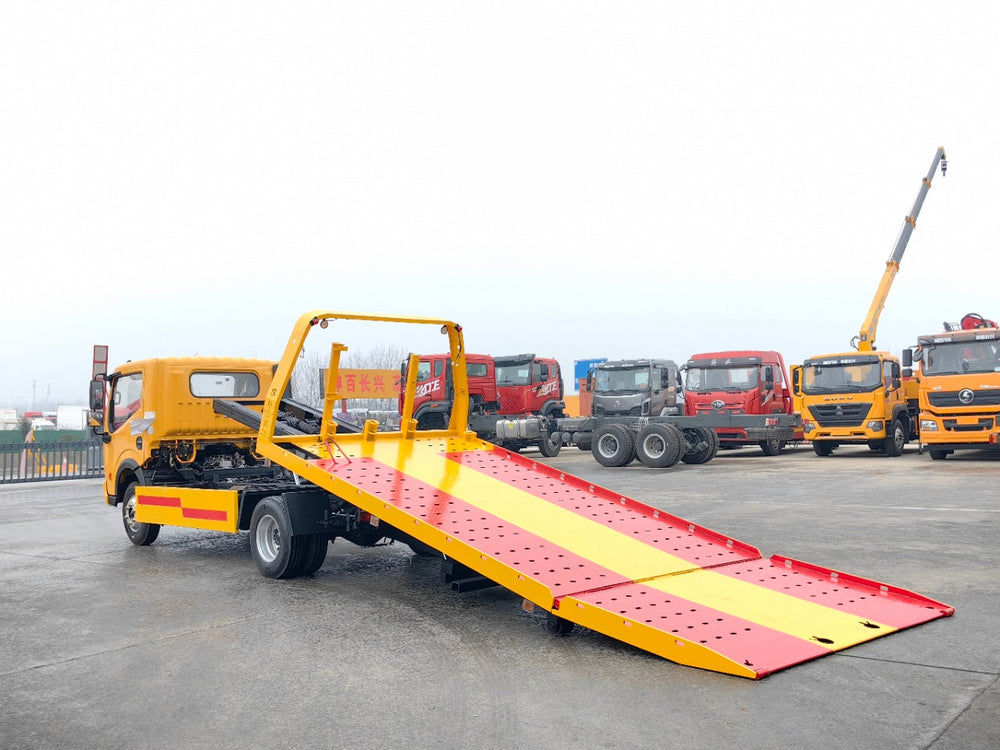

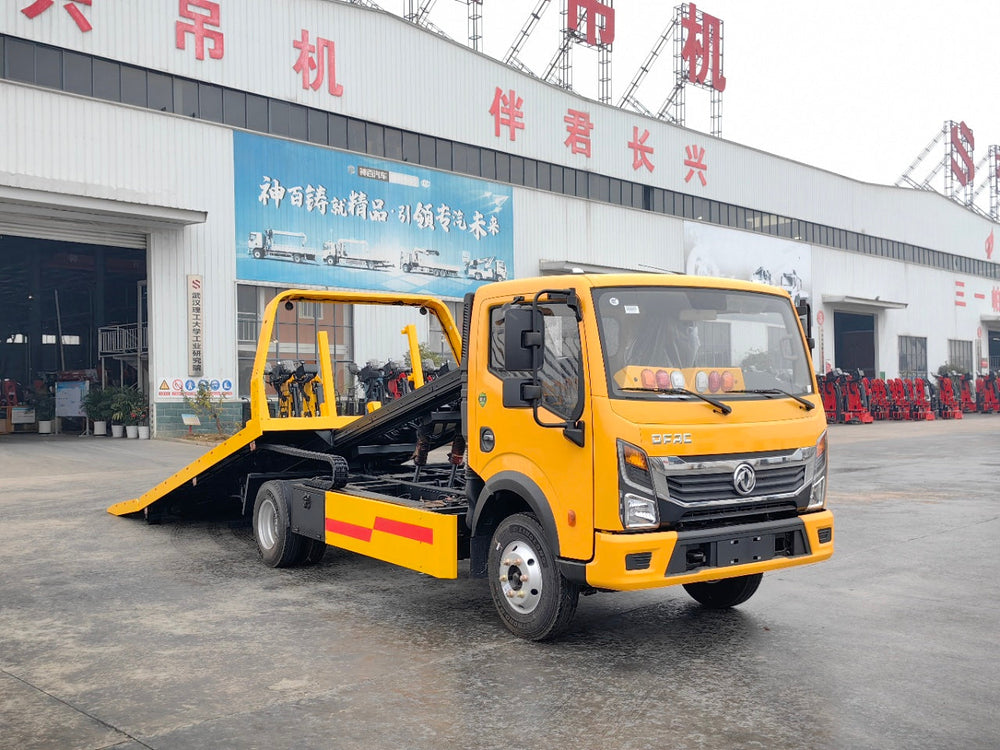

| Rear Turnover Mechanism | Rear Through-shaft Hydraulic Turnover |
| Slideway | 10mm Thick Manganese Steel Chute (reinforced with 8mm steel plate outside the flared opening) |
| Body Structure | Grid welding & densified triangular diagonal bracing under the flatbed |
| Hydraulic System | 110-type flatbed telescopic oil cylinder, 110-type lifting oil cylinder |
| Winch | Standard 4-ton Winch (with 21m steel wire rope) |
| Rear Tow Arm | 4-ton Rear Tow Arm |
| Operation System | Bilateral Linkage Operation System |
| On-board Accessories | |
| Lighting Accessories | 2 Rear Working Lights, 1 Set of Gantry Side Lights |
| Storage & Tools | 1 Tool Box, 1 Crowbar |
| Fixing Accessories | 4 High-quality Binding Belts, 1 Pair of Triangle Wheel Chocks, 1 Pair of Square Wheel Holding Tubes |
| Auxiliary Tools | 1 Pair of Auxiliary Trolleys, 1 Pair of L-shaped Forks |
