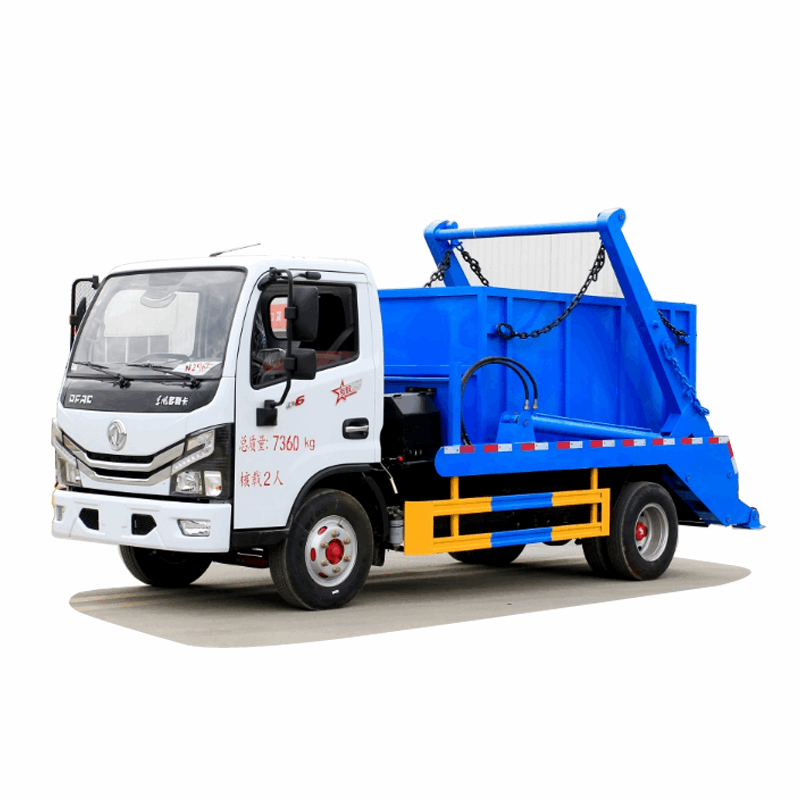

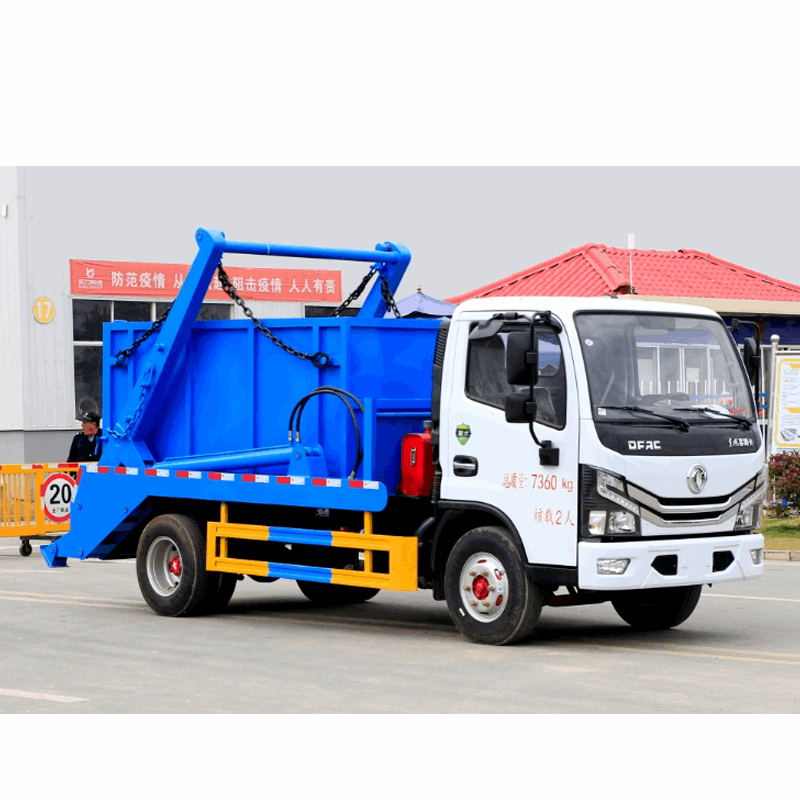

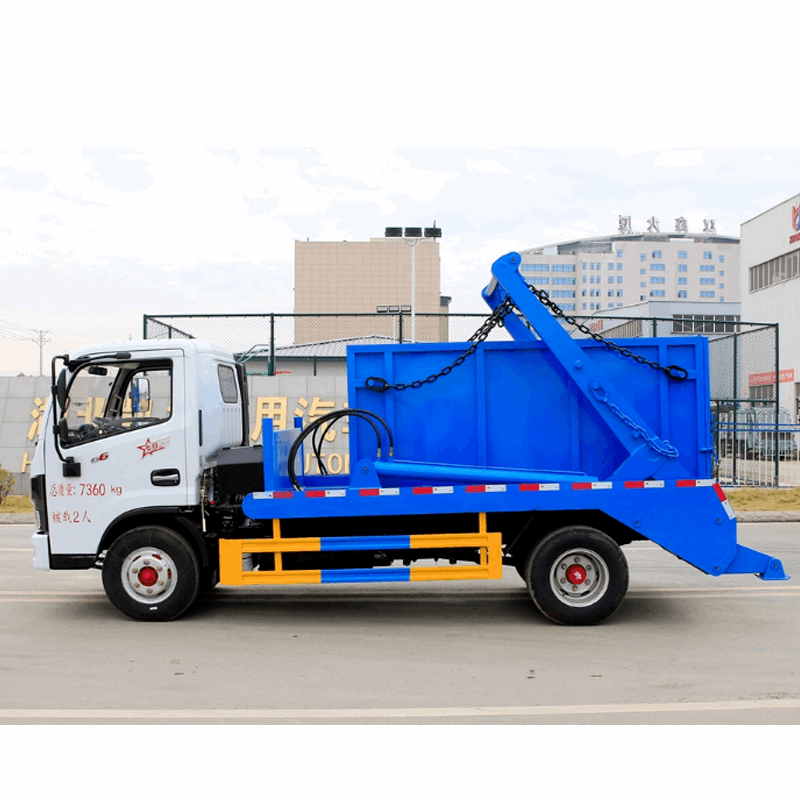

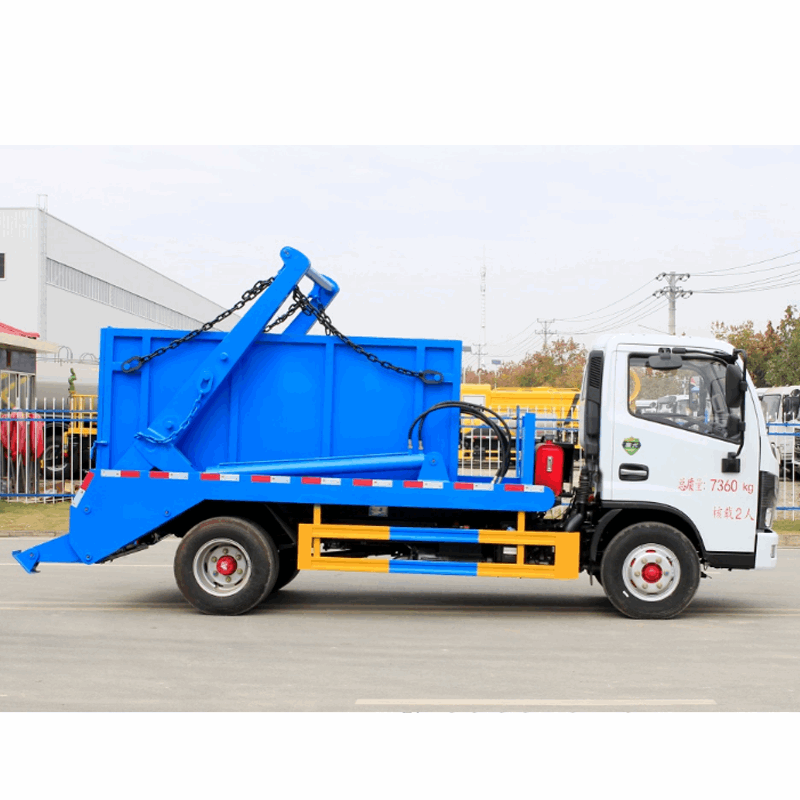

It is suitable for national common garbage bucket, with self-unloading function, hydraulic operation, garbage bucket can be lifted up and down, swing arm working cycle time: 60S. The characteristic of swing-arm garbage truck is that the bucket is separated from the body, which can realize the joint operation of a car and multiple buckets, and cycle transportation, which fully improves the transportation capacity of the vehicle, especially suitable for short-distance transportation, such as the cleaning and transportation of urban garbage by the sanitation department.
| Model: | CLW5070ZBS6 | Volume: | 5cbm |
| Total Weight: | 7360kg | Curb Weight: | 3950kg |
| Size of Outter: | 5995*2000*2910(mm) | Loading position： | Rear end loading |
| WheelBase: | 3300mm | Tire Size: | 7.00R16 |
| Transmission: | 5-Speed | Tire Number: | 6+1 |
| Front/Rear Axle: | 2T/4T | Brake System: | Air Brake |
| Fuel Type: | Diesel | Emission Standard: | Euro 3 |
| Engine Model: | cummins | Power: | 66kw/90HP |
| Displacement: | 2200ml |
| Standard Equipments: |

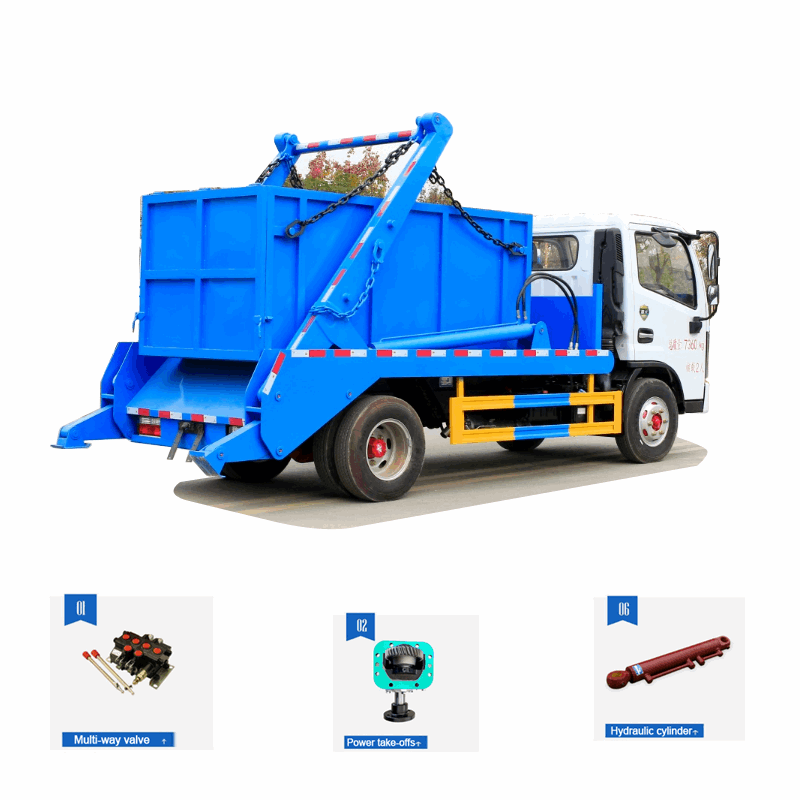

| The power of the system comes from the engine, which is separated by a power take-off, which drives the gear pump to work. The hydraulic system consists of oil tank and filtration system, oil pump, multi way directional valve, one-way throttle valve, oil cylinder, oil pipe, etc. |
